RY223-U · Foldable Study Lamp

RY223-U Eye-Care LED Desk Lamp

Five-color-temperature study and office lamp with slide stepless dimming, 45-minute timer, and 5V/1A USB output.

460 lm3000K-6500KCRI >80Black / White

Final electrical accessories, packaging artwork, certificates, and market-specific requirements must be confirmed in the quotation and approved sample.

Five light colorsSelect color temperatures across the stated 3000K-6500K range for reading, study, and office tasks.

Slide stepless dimmingAdjust output smoothly from the touch-control area instead of being limited to fixed brightness steps.

Compact foldable structureAdjustable joints allow practical positioning and a smaller folded form for storage and retail packing.

Confirmed Product Specifications

Model	RY223-U
Product type	Foldable LED study and office desk lamp
Luminous flux	460 lm
Color temperature	3000K-6500K, five selectable modes
Color rendering	CRI >80
Dimming	Slide stepless dimming
Control	Touch control
Timer	45 minutes
USB output	5V/1A
Input	DC 5V
Material	ABS + aluminum alloy
Colors	Black / White
Product size	190 x 115 x 410 mm
Net weight	653 g
Retail box	425 x 130 x 55 mm
Master carton	435 x 355 x 415 mm; 18 pcs

Key Features

Five selectable color-temperature modes for different desk tasks
Slide stepless dimming for continuous brightness adjustment
Touch controls integrated into the low-profile base
45-minute timer for study or reading sessions
5V/1A USB output for compatible low-power devices
Adjustable lamp head and folding arm structure
Separate night-light function listed for the supplied configuration
Black and white finishes for wholesale programs

Product Views

Black finish with adjustable arm, touch controls, and compact base.

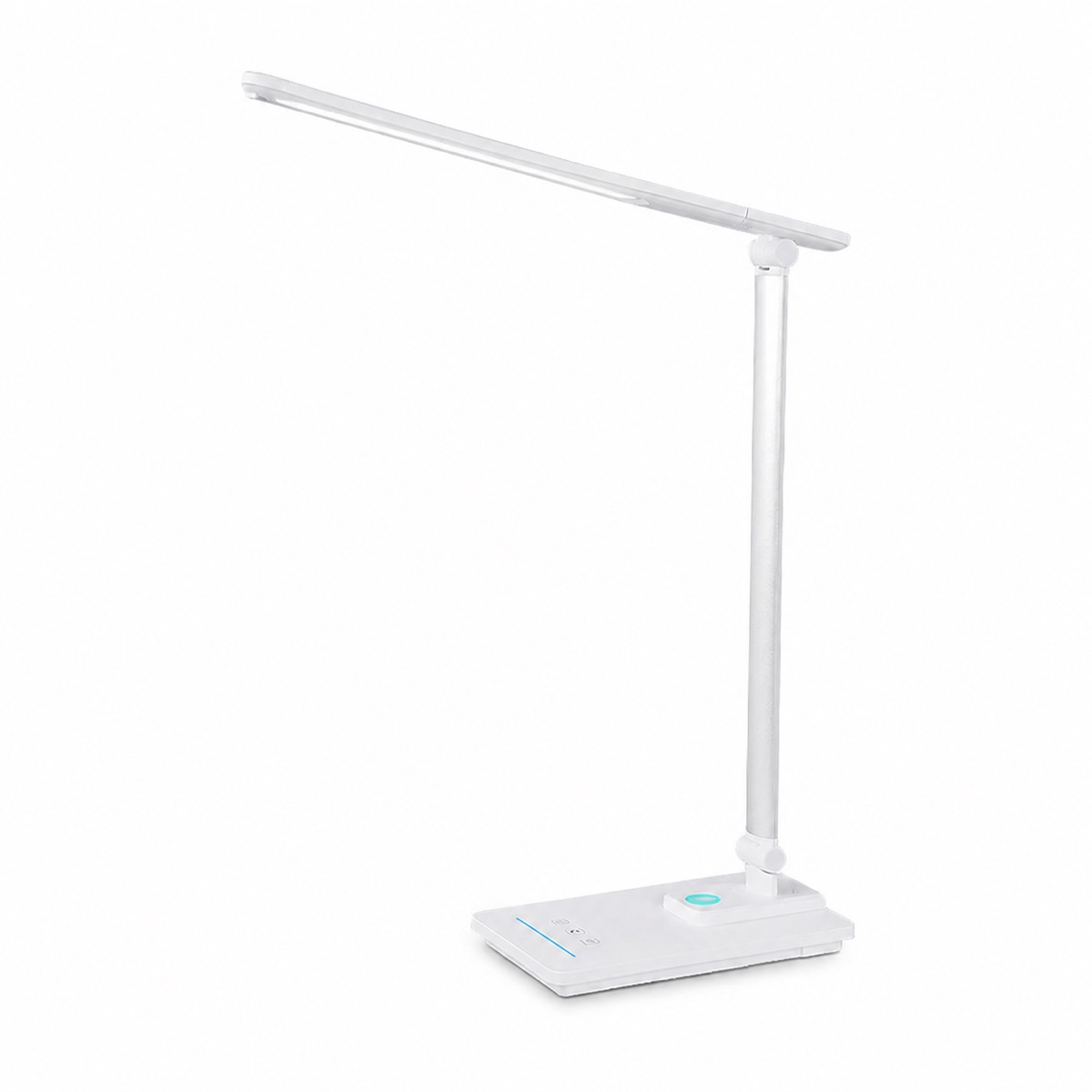

White finish shown in an extended task-lighting position.

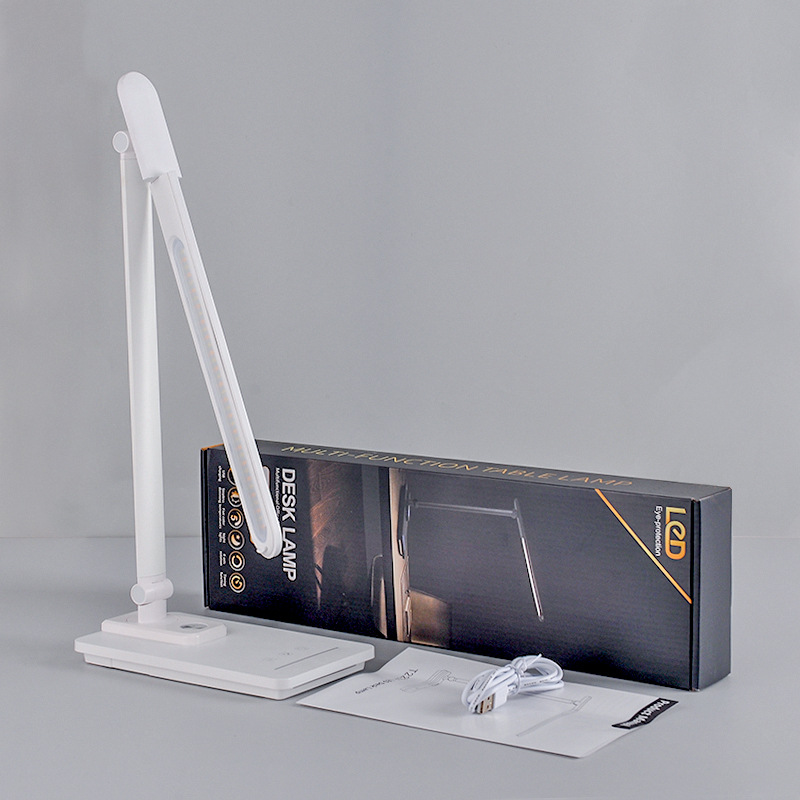

Product, USB cable, manual, and retail color box shown for configuration review.

Function Details

English product-detail views show the supplied control layout, adjustment range, lighting modes, USB output, timer, and night-light function.

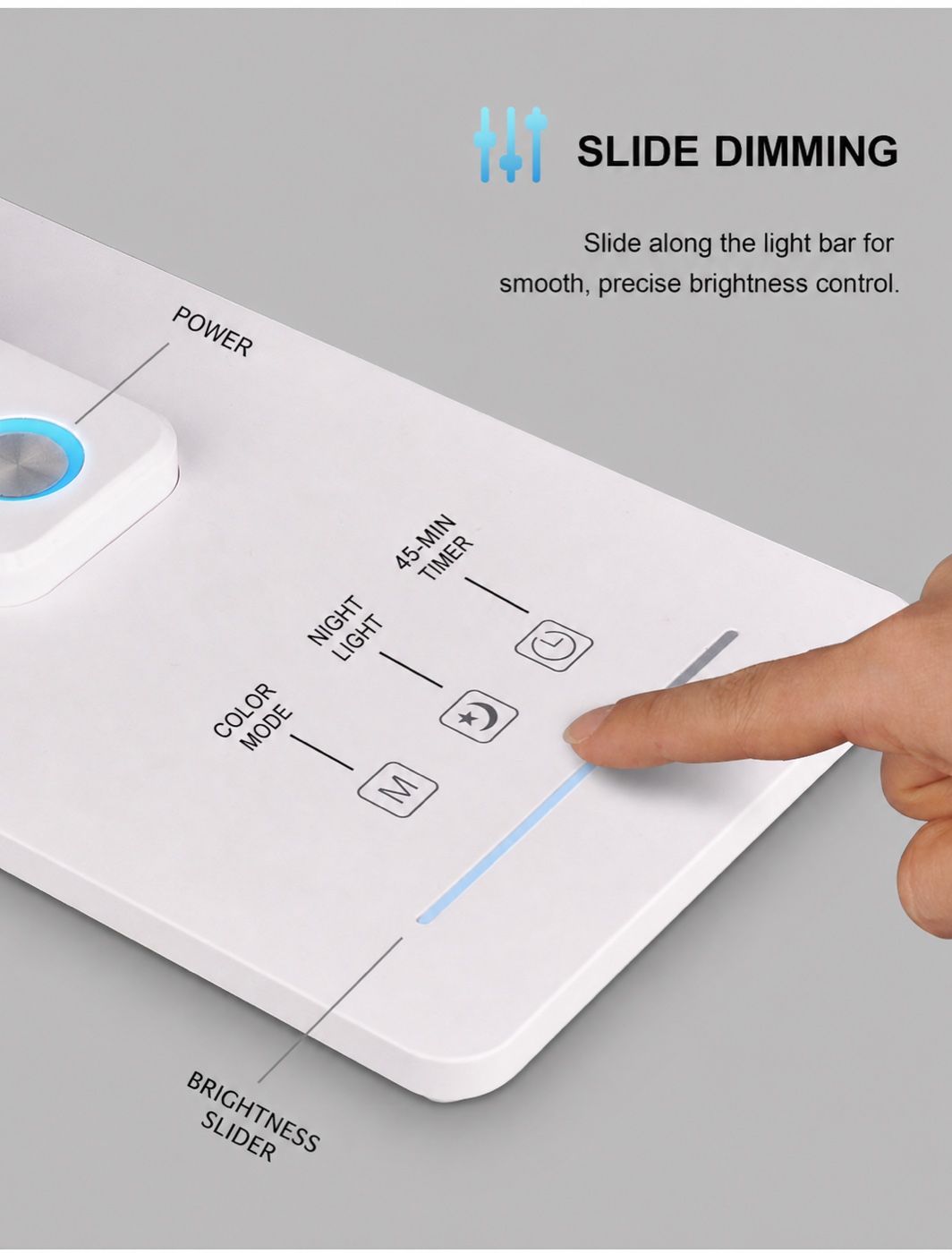

Slide brightness control with color-mode, night-light, timer, and power controls identified.

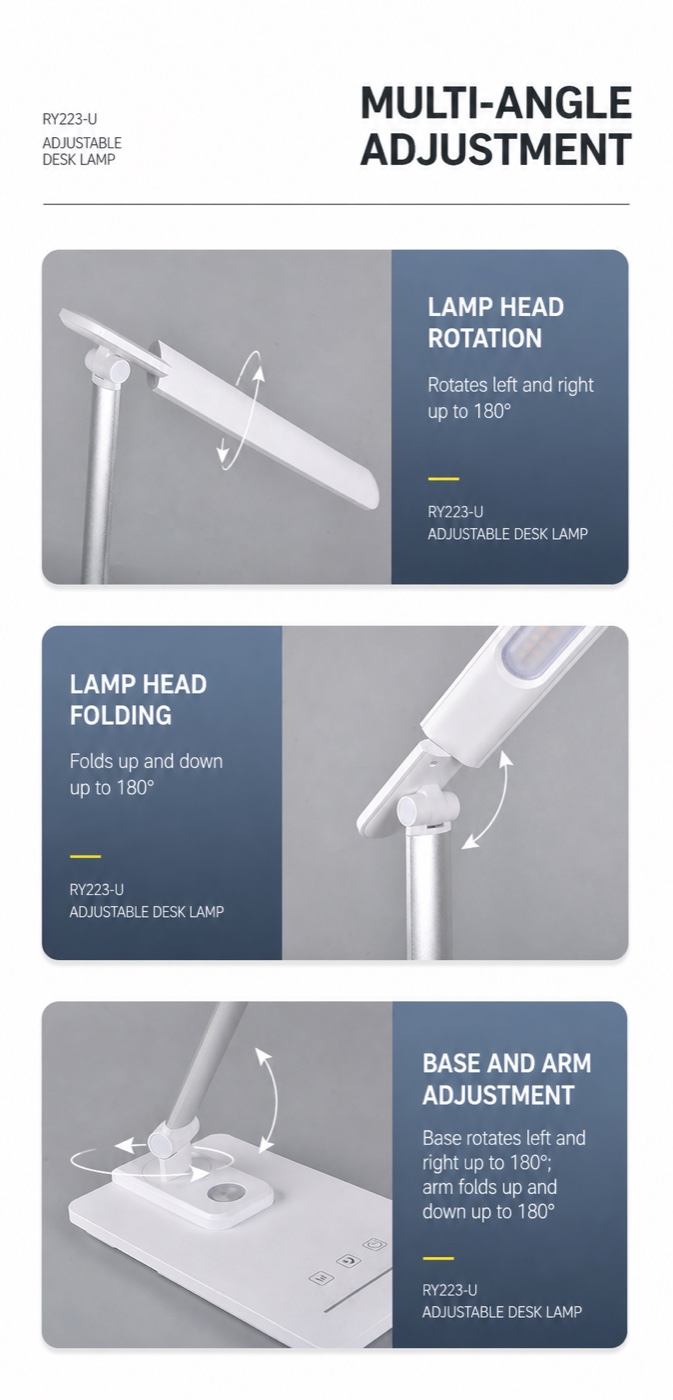

Adjustment views show lamp-head rotation, lamp-head folding, and base-and-arm movement.

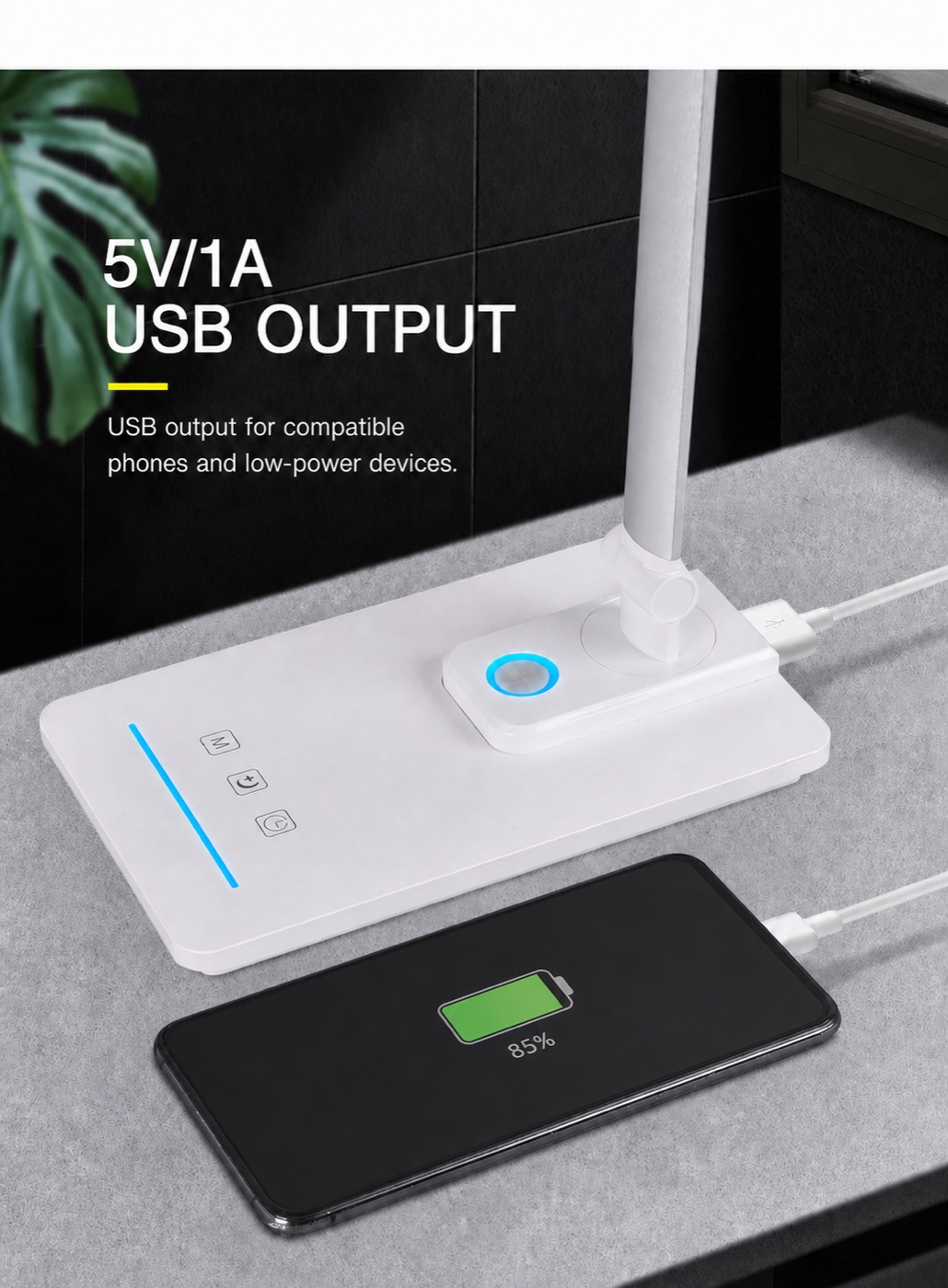

The stated 5V/1A USB output is shown with a compatible phone connected by cable; it is not wireless charging.

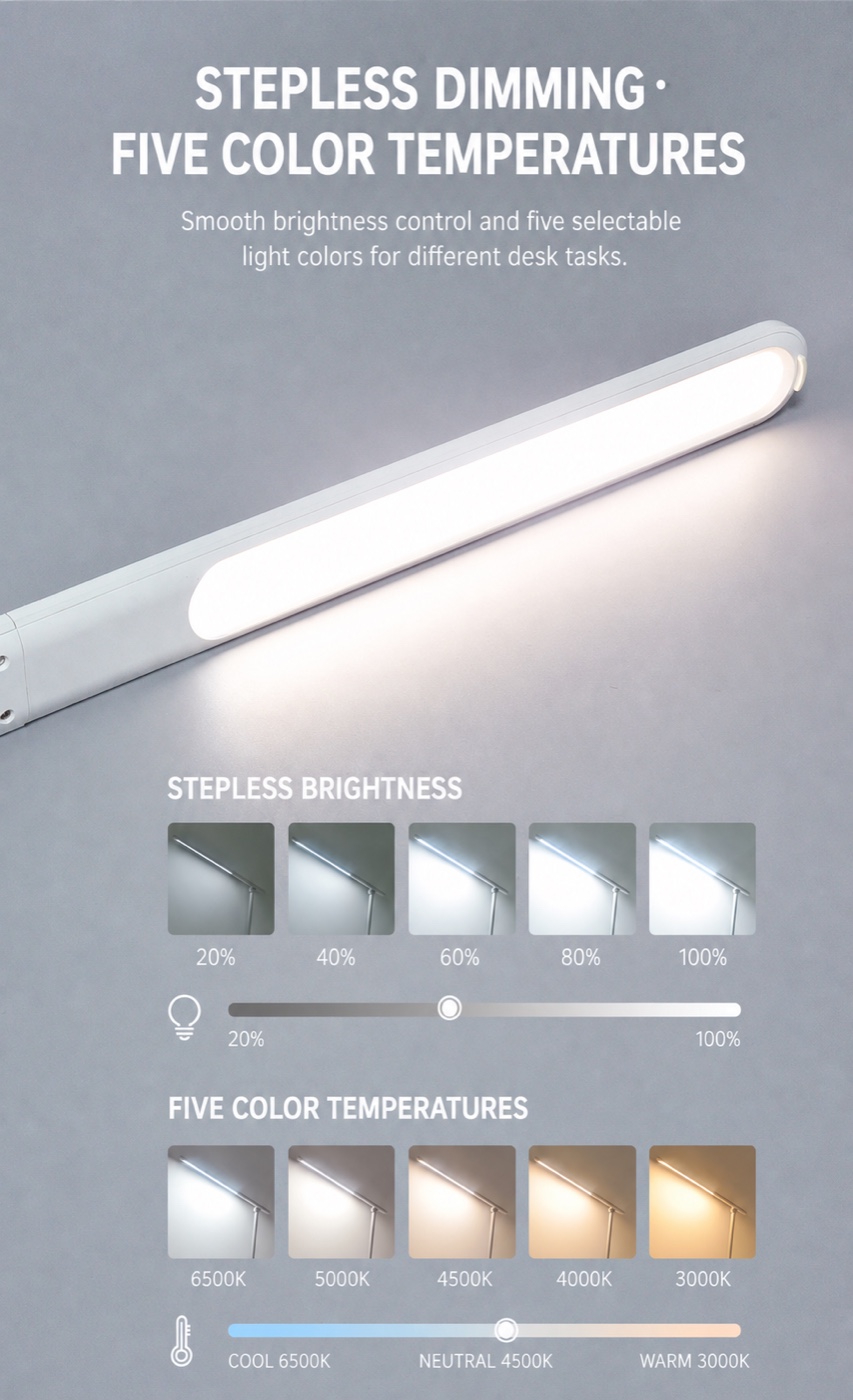

Brightness examples and five stated color temperatures from 6500K to 3000K.

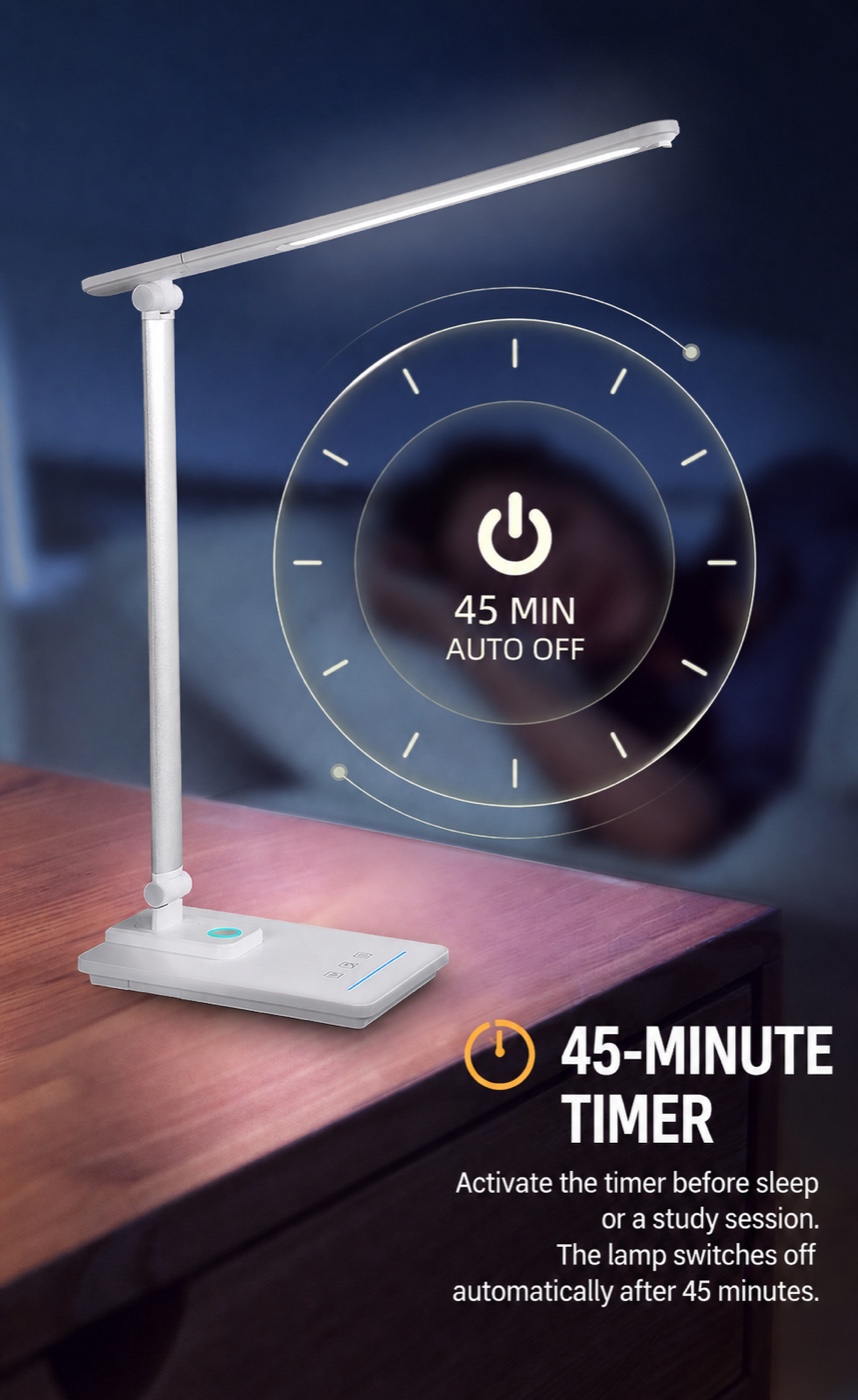

The 45-minute timer switches the lamp off automatically after activation.

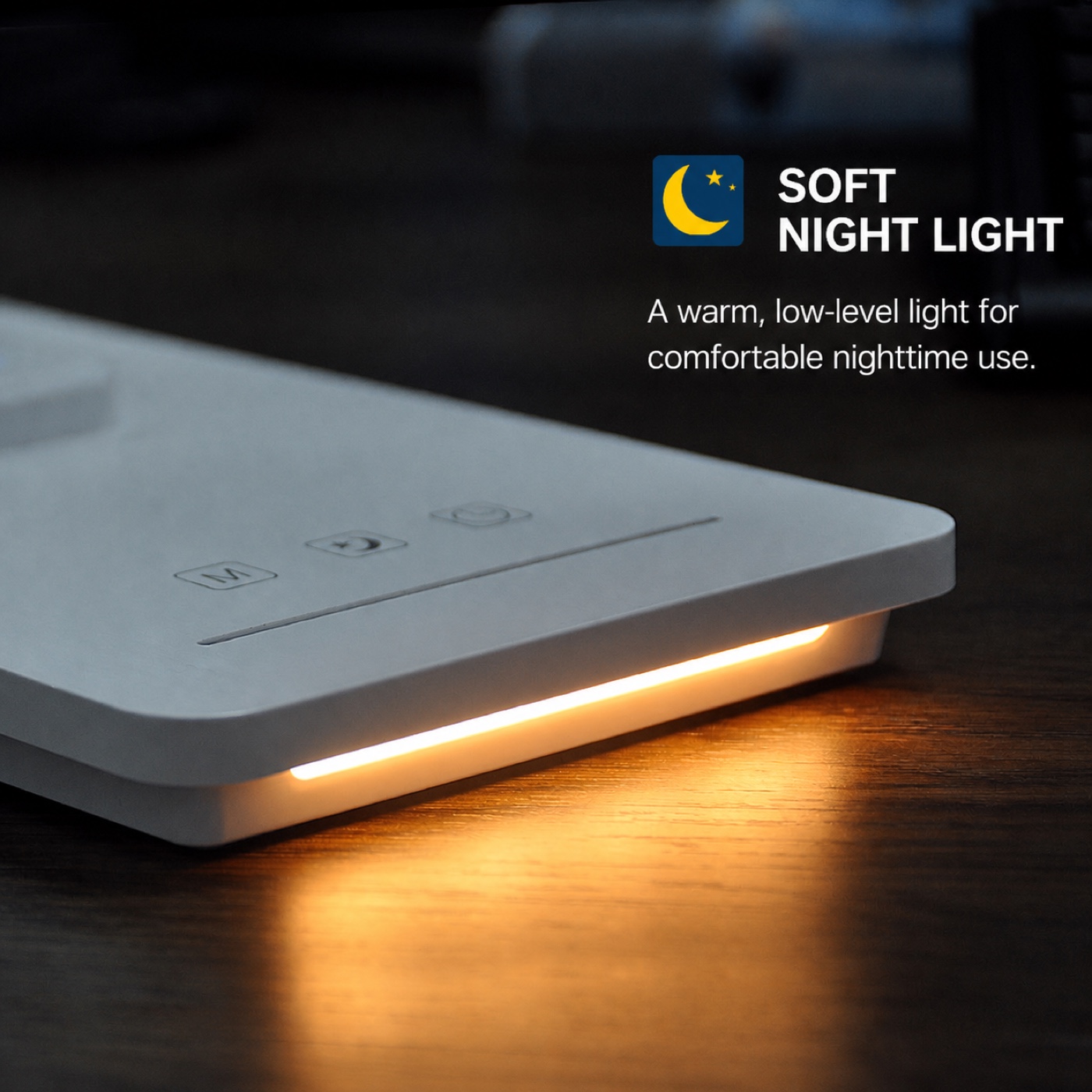

A separate warm, low-level base light supports comfortable nighttime use.

Wholesale, OEM and Private Label

Send the information below so the quotation, sample, artwork, and production specification can be aligned before an order is approved.

Target market and expected order quantity
Black, white, or mixed-color requirement
Input accessory and plug requirements
Logo, manual, color-box, and carton artwork
Required test reports or compliance documents
Inspection and approved-sample requirements

RY223-U Buyer FAQ

What lighting controls does RY223-U provide?

RY223-U provides five selectable color temperatures across a stated 3000K-6500K range and slide stepless brightness adjustment.

Does RY223-U support wireless charging?

No wireless charging is specified for this configuration. The lamp provides a stated 5V/1A USB output for compatible devices.

Can RY223-U be folded for storage and shipping?

Yes. The adjustable structure folds into a compact form. The listed product size is 190 x 115 x 410 mm and the retail box is 425 x 130 x 55 mm.

Can buyers request private label packaging?

Yes. Logo labeling and buyer-specific packaging can be discussed. Final artwork, manuals, colors, electrical configuration, and market requirements should be approved before production.
